Mining machines are designed for soft and frozen soil, for drilling wells in various type. Drilling machines are used in mineral processing, for big construction industrial facilities and for digging large pits for the foundation.

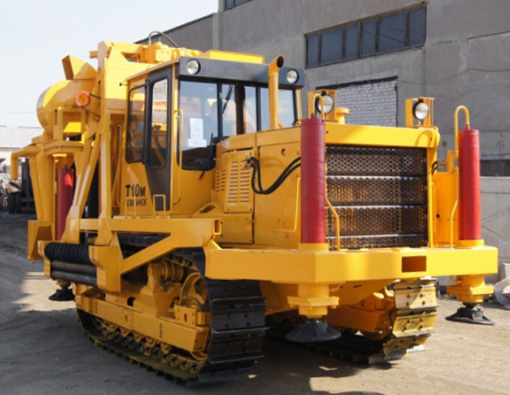

“Charagayt” company serves for rent BTS-150 drilling rig.
Depth of drilling, m no more
a) at shnekovy drilling – 4
b) at sharoshechny drilling – 32
Diameter of wells, mm
a) at shnekovy drilling, 200
b) at sharoshechny drilling, 146
Length of single elements of a boring stav, mm
a) screws, 2000
b) boring pipes (bars), 2000
Tilt angle of the drilling rig to a vertical, degree: from 0 to 30
Frequency of rotation of a boring stav, rpm.
a) on 1 transfer, 175
b) on the 2nd transfer, 480
c) on transfer of reverse motion, 125
Speed of raising of a boring stav of m/min 5.7
Number of lifting hydrojacks, piece 4
Course of a rod of a hydraulic cylinder, mm 1000
Pressure of compressed air of m of kb/min. 9 … 12
NSh 32 hydraulic pump type
L/min pump productivity. 43
Working pressure of the pump, MPa no more than 10 (100)
Overall dimensions of the machine:
a) width 3150
b) length 5835
c) height in working situation 5840
d) height in transport situation 3800
Mass of the hinged equipment, kg 9850
The mass of the filled machine, kg 23880
