Roller is a special machine designed for soil, asphalt and coatings and for strengthening and tamping. Turtlerollеrs are particularly prevalent in the construction, where, in addition to the effects of static weight, vibration is applied to the stregnthening effect.
Turtlerollers are particularly suitable for ground improvement, soil tamping it. “Charagayt” company serves for rent:g.

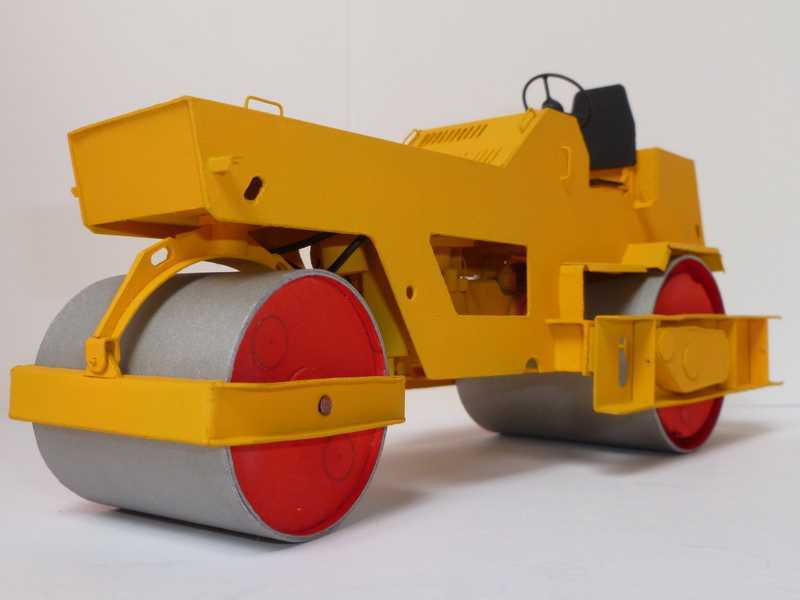

ROLLER DU-47B
Information
Designed for large-scale works on various construction materials base, bituminous rock-made mixtures for hangar rammering.
Technical characteristics:
Mass of a skating rink, t: — 8,5
Width of the condensed strip, mm: — 1400
Diameter of rollers, mm: — 1200
Linear pressure, N/cm from the leading valets: — 290
from the conducted valets: — 340
with a ballast (water): — 43
The compelling force with a frequency of 50 Hz, t: 8,5
Speed of the movement of a skating rink, km/h
I transfer: — 2,09
II transfer: — 4,07
III transfer: — 7,5
Transmission: the mechanical
Engine:
model: — D-144-09
power, kW: — 44
Overall dimensions, mm
length: — 4790
width: — 1800
height with a cabin: — 3250
height with an awning: — 2900
height with the awning lowered back: — 2400
Technical characteristics:
Mass of a skating rink, t: — 8,5
Width of the condensed strip, mm: — 1400
Diameter of rollers, mm: — 1200
Linear pressure, N/cm from the leading valets: — 290
from the conducted valets: — 340
with a ballast (water): — 43
The compelling force with a frequency of 50 Hz, t: 8,5
Speed of the movement of a skating rink, km/h
I transfer: — 2,09
II transfer: — 4,07
III transfer: — 7,5
Transmission: the mechanical
Engine:
model: — D-144-09
power, kW: — 44
Overall dimensions, mm
length: — 4790
width: — 1800
height with a cabin: — 3250
height with an awning: — 2900
height with the awning lowered back: — 2400
Request

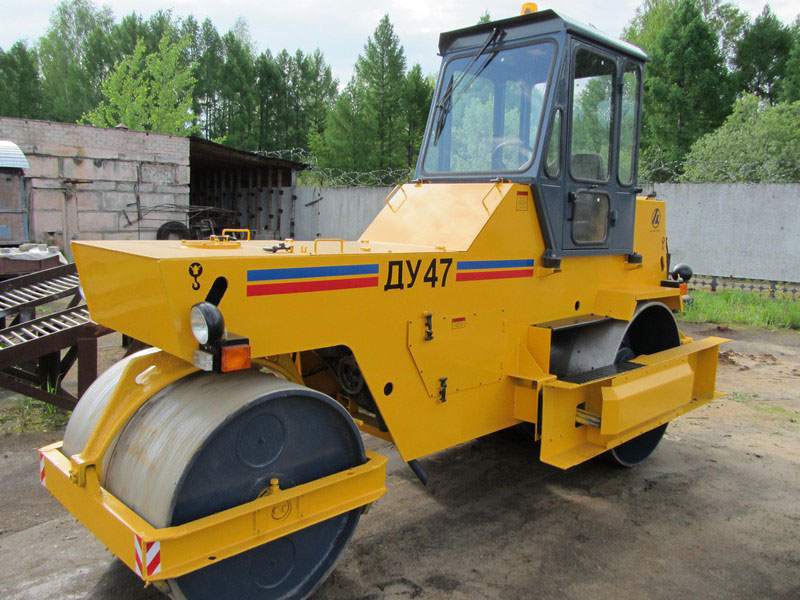

ROLLER DU 47
Information
Technical characteristics
Weight, t
constructive — 7
operational — 7.5
Diameter of a forward valets, mm — 1000
Diameter of a back valets, mm — 1200
Width of the condensed strip, mm — 1400
Linear pressure of a forward valets, N/cm (kgf/cm) 340 (34)
Linear pressure of a back valets, N/cm (kgf/cm) 290 (29)
Working speed, km/h — 1.7, 3.2, 6.8
Frequency of rotation of a shaft of the vibroactivator, Hz 50
The compelling force, kN — 70
Transmission — mechanical
Engine — D-144-09
Rated power, kW (h.p.) — 44 (60)
Specific fuel consumption, l/h — 13.4
Overall dimensions, mm
length — 4800
width — 1800
height (with a cabin) — 3250
Weight, t
constructive — 7
operational — 7.5
Diameter of a forward valets, mm — 1000
Diameter of a back valets, mm — 1200
Width of the condensed strip, mm — 1400
Linear pressure of a forward valets, N/cm (kgf/cm) 340 (34)
Linear pressure of a back valets, N/cm (kgf/cm) 290 (29)
Working speed, km/h — 1.7, 3.2, 6.8
Frequency of rotation of a shaft of the vibroactivator, Hz 50
The compelling force, kN — 70
Transmission — mechanical
Engine — D-144-09
Rated power, kW (h.p.) — 44 (60)
Specific fuel consumption, l/h — 13.4
Overall dimensions, mm
length — 4800
width — 1800
height (with a cabin) — 3250
Request

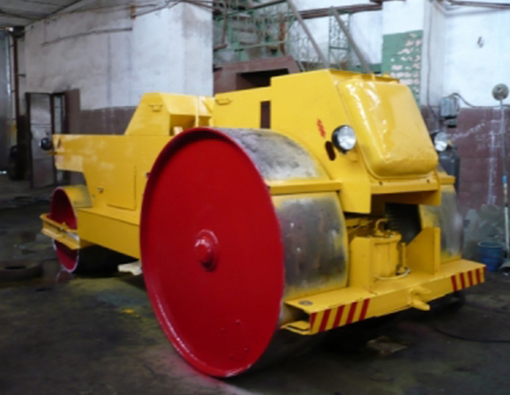

ROLLERS DU-48A
Information
Static roller, has relatively low productivity than turtle roller. This class static rollers are used in such places where turtle rollers application is not rational. Under the influence of the static cylinder free edges don’t get down, the curbs do not move. Static rollers should be used also for bridges’ hangar smoothing.
Model — DU-48
Engine — D144-09 – 44 kW
Speed — 8 km/h
Consolidation width: — 1850 mm
Weight — 12 t
The compelling force: — no
Linear loading: — 75 kg/cm
Sizes — 5200х1860х2600 mm
Drive — Mechanical
Model — DU-48
Engine — D144-09 – 44 kW
Speed — 8 km/h
Consolidation width: — 1850 mm
Weight — 12 t
The compelling force: — no
Linear loading: — 75 kg/cm
Sizes — 5200х1860х2600 mm
Drive — Mechanical
Request

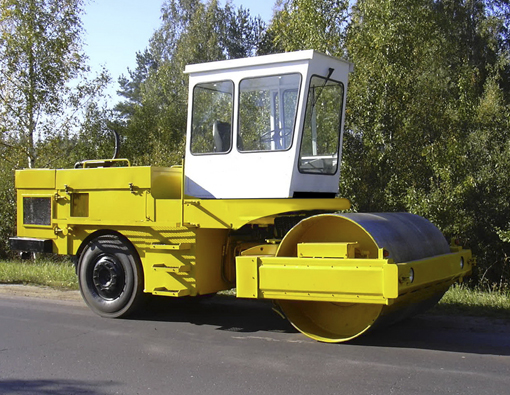

ROLLERS K-12
Information
Used for the stone stuffed base, a large stone gravel and for bitumen binder road construction materials for tamping, bearing, and for upper layers connecting during construction.
It can also be used for none connected or weak connected soil rammering.
It can also be used for none connected or weak connected soil rammering.
Weight, kg — 12000
Width of the condensed strip, mm — 2100
Diameter of a valets, mm — 1300
Quantity of pneumowheels, piece — 4
Diameter of pneumowheels, inch — 11-20
Speed of movement, km/h — 0 … 8
The revolting force of the vibrator, kN:
Forward — 120
the back –
Frequency of fluctuations of the vibrator, Hz
Forward — 35
The back –
Engine — MMZ-245
Power, kW (h.p.) 77 (105)
Overall dimensions, mm:
Length — 5950
Width — 2500
height — 3350
Forward — 120
the back –
Frequency of fluctuations of the vibrator, Hz
Forward — 35
The back –
Engine — MMZ-245
Power, kW (h.p.) 77 (105)
Overall dimensions, mm:
Length — 5950
Width — 2500
height — 3350
