DUMP TRACKS

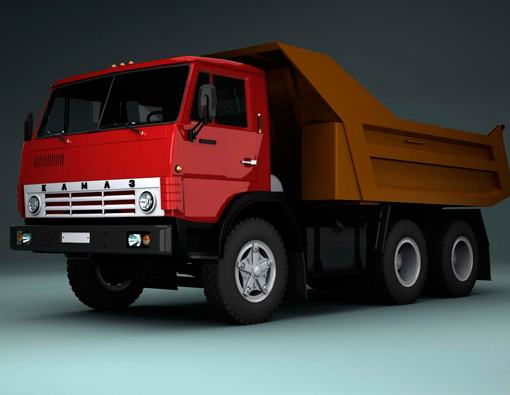

KAMAZ 5511
Information
Request
KAMAZ 5511
Information
Car type — Dump truck
Wheel formula — 6×4
Full mass of a car, kg — 19000
Permissible load on a forward axis, kg — 4400
Permissible load on a back axis, kg — 14600
Loading capacity, kg — 10000
Volume of a platform, m3 — 6.6
The mass of the equipped car, kg — 8850
Maximum speed (km/h) — 90
Engine KAMAZ — 740.10
Engine capacity (h.p.) — 210
Transmission — mechanical
Model — 14
Number of transfers — 5
Size of tires — 260-508P
Fuel tank — 175
The cabin triple, is placed over the engine, without berth
Request

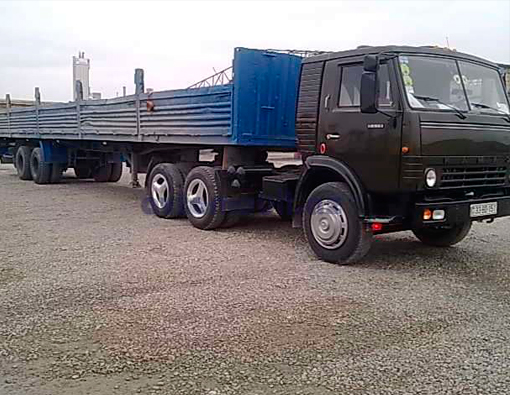

KAMAZ 5410
Information
Request
KAMAZ 5410
Information
The equipped weight, kg — 6650
Including:
on forward axis — 3350
on the cart — 3300
Full weight, kg — 14900
Including:
on forward axis — 3940
on the cart — 10960
Admissible full mass of the road train, kg — 25900
Max. speed of the road train, km/h — 80
Time of dispersal of the road train to 60 km/h, with 70
The max. rise overcome by road train, % 18
Выбег road trains from 50 km/h, m 800
Brake way of the road train from 60 km/h, m 38,5
Control fuel consumption of the road train, l / 100 km:
at 60 km/h — 32,0
at 80 km/h — 40,4
Pressure in tires, kgf / see quarter:
lobbies — 6,5
back — 4,3
Request

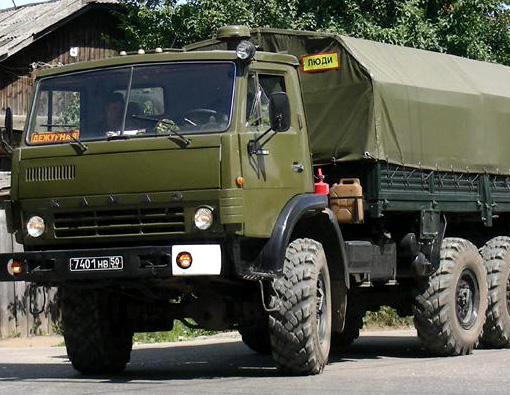

KAMAZ-43101
Information
Request
KAMAZ-43101
Information
Loading capacity, kg — 6000
The equipped weight, kg — 8905
Full weight, kg — 15205
Load of the forward bridge, kgf — 5020
Load of the back cart, kgf — 10185
The full mass of the trailer, kg 10000 (7000 for off road terrain)
Engine model — 7403.10
Working volume, l — 10,85
Capacity of fuel tanks, l — 170+125
Management mechanical, remote
Diameter of a drum, mm — 400
Maximum speed, km/h — 90 (80)
Request

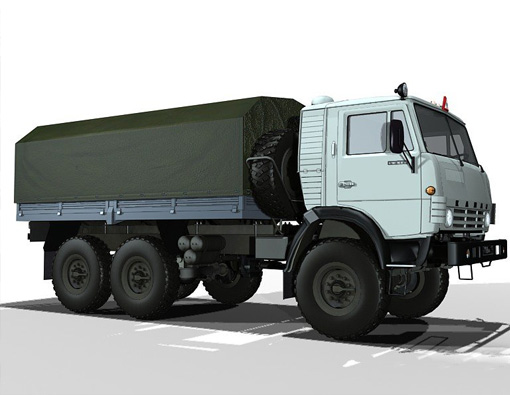

KAMAZ” TRUCKS-4310
Information
Request
KAMAZ” TRUCKS-4310
Information
Body style is wholly metal with side opening background, a tent is designed. A three-bed cabin, metallic, located at the top of the engine.
Can be used as FWD or vehicle for equipments.

Wheel formula — 6×6
Loading capacity, kg — 7000
Own weight, kg — 8715
Full weight, kg — 15100
Engine: type — Diesel, 4-stroke
power, h.p. — 210
Maximum speed, km/h — 85
Capacity of tanks, l 250
Overall dimensions, mm length 7895
Width — 2500
Height — 3200

Request

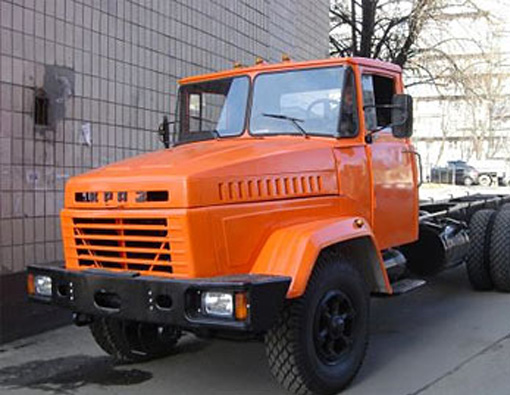

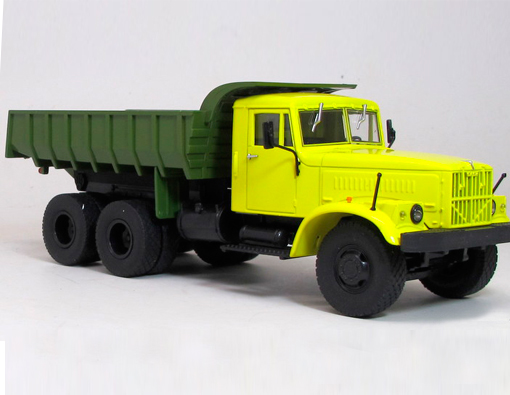

KRAZ 256 B1
Information
Request
KRAZ 256 B1
Information
Loading capacity — 12500 (11500) kg
Max. speed of the car — 68 km/h.
Time of dispersal of the car to 50 km/h 32 m.
Runout the car from 50 km/h 570 m.
The max. overcome rise by the car 32%
Brake way of the car from 40 km/h 17,2 m
Control fuel consumption at a speed of 60 km/h, l / 100 km 39,0 l
Turn radius:
on an external wheel — 12,3 m
dimensional 13,0 m
The volume of a body — 6,0 cbm
Time of raising of a loaded body 20 seconds
Time of lowering of an empty body 30 seconds
Request

KRAZ 258 B1
Information
Request
KRAZ 258 B1
Information

Admissible full mass of the semi-trailer 30000
The max. rise overcome by road train of 18%.
Brake way of the road train from 40 km/h, m 18,4
Road gleam, mm — 360
Fuel consumption, at 60 km/h, l / 100 km. 50,9
Capacity of fuel tanks, l — 2×165
The engine — the diesel ЯMZ-238M2
Engine capacity, kw (h.p.) — 176(240)

Request

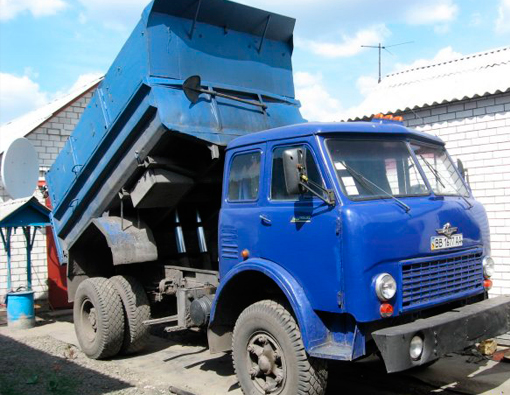

MAZ-5549
Information
Request
MAZ-5549
Information

It is intended for transportation of construction and other loose and lumpy freights.

Loading capacity, kg — 8 000
Own weight, kg — 7 225
Full weight, kg — 15 375
Base, mm — 3 400
Road gleam (under a forward axis), mm 270
The smallest radius of turn, m 7,5
Length, mm — 5 785
Width, mm — 2 500
Height, mm — 2 620
Maximum speed, km/h — 75
Control fuel consumption, l / 100 km 22
Body volume. cubic meter: with the main boards 5.7
Unloading back
Basic chassis model — MAZ-5335
Engine model — ЯМЗ 236
Engine type — Diesel

Request
